Laser cutting of tubes

With laser cutting of tubes, the entire processing in the form of drilling, sawing, turning, milling and bevelling can be done automatically, accurately and quickly! Not only does this mean savings and increased output, it also gives you completely new design possibilities.

Laser cutting of tubes is a thermal cutting process with high quality cuts in all types of materials from 0.5 to 30 mm wall thickness. The cutting result is impressive, and it is possible to produce parts with 0.1 mm accuracy with sharp corners and a minimum of heat impact. The focused laser beam melts a narrow cut in the base material, after which the melt is blown out by a cutting gas, which leaves a clean cut without slag. Therefore, it is possible to provide high quality edges, which do not necessarily need reworking.

Mortise and tenon joints
At Hosta Industries, we strive to provide the best service to our customers. Therefore, we also offer cutting of positioning aids that optimise the assembly process. These might, for instance, be the cutting of mortises in the tube and the addition of tenons that fit into these mortises. Thus, we can assist you through the entire process from start to finish.

If you wish to learn more about laser tube cutting, feel free to contact us. Then we will find the right solution for your production.

The advantages of laser tube cutting
With laser cutting of tubes, the entire processing in the form of drilling, sawing, turning, milling and bevelling can be done automatically, accurately and quickly! Not only does this mean savings and increased output, it also gives you completely new design possibilities. It is possible to optimise the assembly process by means of positioning aids such as adding tenons and mortises, and to prevent assembly errors by means of coding aids.



Results
The benefits of laser tube cutting are also evident in Hosta Industries’ performance in production contexts, as production time is reduced by 46%. The tube laser is one of the reasons for this change, and that means fast production and short delivery times for our customers.

In connection with laser cutting, we also offer laser cutting of plates.

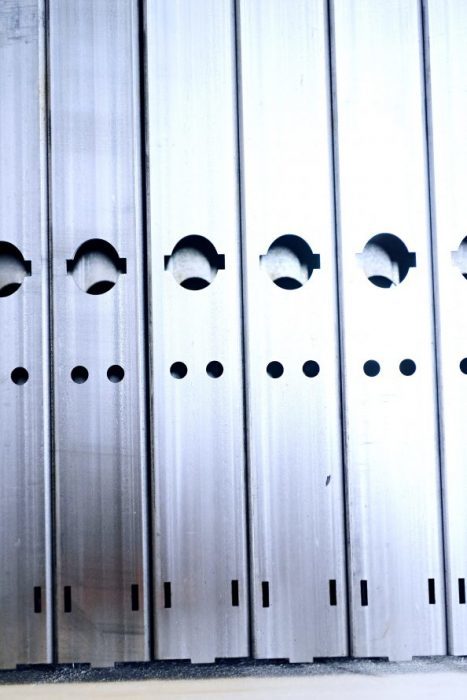

Laser cutting of tube at Hosta Industries A/S

Machine list

Hosta Industries has two Trumpf TruLaser Tube 7000 tube lasers. They have the following capabilities:

Maximum raw material length: 9200 mm
Maximum finished workpiece length: 6500 mm
Maximum wall thickness: Steel: 10 mm
Stainless: 6 mm
Aluminium: 5 mm
Diameter limitation: Round tubes: min 12 mm/max Ø254 mm
Square tubes: min 15 × 15 mm/254 mm diagonal max
Open profiles: sides max 100 mm
Maximum weight of finished workpiece: 37 kg/m
